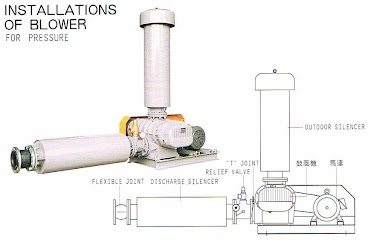

Pressure Installation Longtech Blower

Type & Varian Product of

Pressure package includes, blower, electric motor, basic belt guard, suction silencer, relief valve, gauge, check valve, discharge silencer and flexible joint.

Three lobes Roots Blowers are a new series of Roots type blowers. Roots blowers are positive displacement pumps that are one of the most efficient types of pumps in their performance range. Roots blowers run dry as the oil is contained in the bearing/gearbox housing and sealed from the process air.

The three lobe technology reduces noise by as much 5dBa, this also lowers vibrations and increases the life of the bearings. The Longtech blowers are CNC machined to precision tolerances, promoting air performance and efficiency.

The blower range can handle from -500mbar to +800mbar with flow rates from 30m3/hr to 21,750m3/hr. The blowers are available as just the blower or as a blower package through to a full blower enclosure. Optional VSDs can be supplied also be provided.

Feature:
  • Stable air flow and fewer pressure variations
  • Clean air, with no oil dirty particles
  • Construction is simple and easy to maintain
  • Bearings and gears are lubricated with oil on end side of the blower
  • All of product can be used for OEM
  • Proven design

Quality Manufacture
Quality Manufacture Longtech
Quality Manufacture Roots Blower
  • Bearing : All Longtech blower units are using SKF/ NTA bearing with long liife. Anti friction type vary with machine.
  • Seal : Low-wear, non-contacting,labyrinth-type seals ensure performance and long life
  • Rotors : Made from cast iron or stainless steel with stiff design for maximum life. By CNC and 3D machinery control to ensure the highest performance, providing with trouble-free performance and durability.
  • Shaft : Impeller shafts are alloy steel forging that allow higher operating pressure and rotation speeds.
  • Timing Gears : Forged steel gears with hardened and ground spur teeth to reduced vibrations and ensures accurate rotor to rotor timing for smooth adn efficient operation.
  • Casing : All Longtech blower unit are single-piece construction and precision machined cast iron, with ribs for strength and consistent thermal behaviour.

Structure & Material
Structure & Material Longtech
Structure Roots Blower
Material Longtech Roots Blower
Material Longtech Roots Blower


Feature :

  1. Strict management of quality standards.
  2. Technical customization (size, pressure, design, pump accessories).
  3. Assembled using state-of-the-art CNC machinery enabling precise measurements and grinding needed for more efficient pumping.
  4. Fewer vibrations transmitted through the lobe, for longer-lasting shafts, gears and bearings.
  5. Three-lobe design controls any backflow pressure towards rotor.
  6. Oil and dust-free outlet.
  7. Lubricated with high grade oil, proven to be a much better alternative to grease.
  8. Significant improvement in air performance ratios: wider air, pressure and vacuum range, more stable flow, fewer pressure variations.
  9. Much quieter: our new design can effectively reduce noise by approximately 5 dB.
  10. Lower energy consumption.
  11. All our products can be used for OEM.
Specification :
(1) LT-type Roots Blower for Pressure use
ModelDiameterPressure mmAqAir volume m3 /minHorse Power (HP)
LT-0401.5"0 ~ 60000.48 ~1.050.5 ~ 2
LT-0502"0 ~80000.15 ~ 2.922 ~ 7.5
LT-0652.5"0 ~80001.09 ~ 5.173 ~ 10
LT-0803"0 ~80001.28 ~ 8.645 ~ 20
LT-1004"0 ~80002.74 ~ 13.367.5 ~ 25
LT-1255"0 ~80005.65 ~ 24.6610 ~ 40
LT-1506"0 ~80009.61 ~ 31.8415 ~ 50
LT-2008"0 ~800011.98 ~ 51.0325 ~ 75
LT-25010"0 ~800019.98 ~ 79.7030 ~ 125
LT-30012"0 ~800046.70 ~ 159.060 ~ 250
LT-35014"0 ~8000100.3 ~ 257.8100~500
LT-40016"0 ~8000208.8 ~ 362.5150~600

Application :

  1. Pneumatic conveying
  2. Waste water treatment plants
  3. Electroplating tanks
  4. Activated sludge systems.
  5. Drying systems.

Download Product Catalog  Roots Blower
Klik DISINI



Produk terkait yang dapat dibutuhkan


For Inquiry & Information Contact : marketing@hineko.id / marketing.hineko@gmail.com
Whatsapp Click Me : http://bit.ly/equipmenthineko
Telp : +6281369919982 Jual Pompa Showfou Indonesia










SH Automatic High Head

Jual Pompa Celup Showfou, Submersible Pump Showfou, Dewatering Pump, Sewage Pump, Pompa Air Limbah, Pompa Air Bersih, Pompa Kolam Ikan, Blower Aerator, Roots Blower, Pengolahan Air Limbah, Media Sarang Tawon, Media MBBR, Media Biofilter, Media Biofilm, Media Bio Ball, Media Biofilter Sarang Tawon, Submerge Aerated Fixed Film, SAFF, Reaktor Biofilter
NOTICE :
THIS IS NOT OFFICIAL PAGE OF SHOWFOU ELECTRIC.
page www.mediasarangtawon.com is a part reseller of local vendor in Indonesia
For Inquiry & Information Contact : marketing@hineko.id / marketing.hineko@gmail.com


Whatsapp Click Me : http://bit.ly/equipmenthineko

Showfou Electric Machine Co.,Ltd
Automatic Highhead Pumps



SHA


FEATURES:


  • Power:   1 HP
  • Frequency:  50HZ/60HZ
  • Motor:   2 poles
  • Motor Casing:   Stainless 304
  • Impeller:  Bronze









SPECIFICATIONS:




Type
Motor
Pump
Cable
Wt.
Power
Phase
Volt
Bore
Max. Head
Max. Flow
HP
PH
V
Inch
M
L/min
M
Kg
SHA-111N
1
1
110
1.5"
25
200
6
23
SHA-112N
1
1
220
1.5"
25
200
6
23







SH High Head

Jual Pompa Celup Showfou, Submersible Pump Showfou, Dewatering Pump, Sewage Pump, Pompa Air Limbah, Pompa Air Bersih, Pompa Kolam Ikan, Blower Aerator, Roots Blower, Pengolahan Air Limbah, Media Sarang Tawon, Media MBBR, Media Biofilter, Media Biofilm, Media Bio Ball, Media Biofilter Sarang Tawon, Submerge Aerated Fixed Film, SAFF, Reaktor Biofilter
NOTICE :
THIS IS NOT OFFICIAL PAGE OF SHOWFOU ELECTRIC.
page www.mediasarangtawon.com is a part reseller of local vendor in Indonesia
For Inquiry & Information Contact : marketing@hineko.id / marketing.hineko@gmail.com


Whatsapp Click Me : http://bit.ly/equipmenthineko

SHOWFOU Electric Machine Co.,Ltd
Submersible High Head Pump
for Clean Water

SH
Features
  • Ranging from 1 ~15HP
  • Single Phase is available for 1,2 & 3HP
  • 2 poles motor design
  • Closed Bronze impeller designed for the clean water pumping use
  • Motor casing made of SUS 304
  • Stainless Steel 304 Strainer
Specification
Type
Motor
Pump
Cable
Wt.
Power
Phase
Volt
Bore
Max. Head
Max. Flow
HP
PH
V
Inch
M
L/min
M
Kg
SH-111N
1
1
110
1.5"
25
200
6
23
SH-112N
1
1
220
1.5"
25
200
6
23
SH-132N
1
3
200 ~ 480
1.5"
25
200
6
23
SH-212HN
2
1
220
2"
30
350
10
30
SH-232HN
2
3
200 ~ 480
2"
30
350
10
30
SH-312H
3
1
220
3"
35
450
10
46
SH-332H
3
3
200 ~ 480
3"
35
450
10
46
SH-532
5
3
200 ~ 480
3"
40
600
10
49
SH-732
7.5
3
200 ~ 480
4"
46
800
10
77
SH-1032
10
3
200 ~ 480
4"
52
1,000
10
88
SH-1532
15
3
200 ~ 480
4"
62
1,100
10
120
